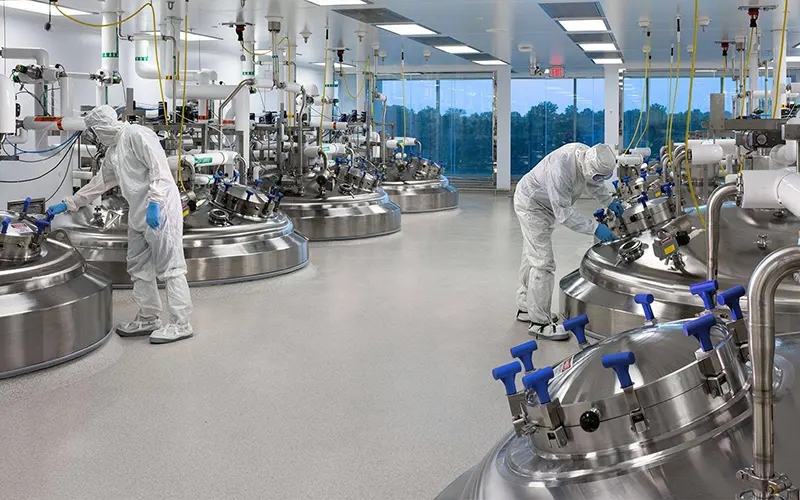

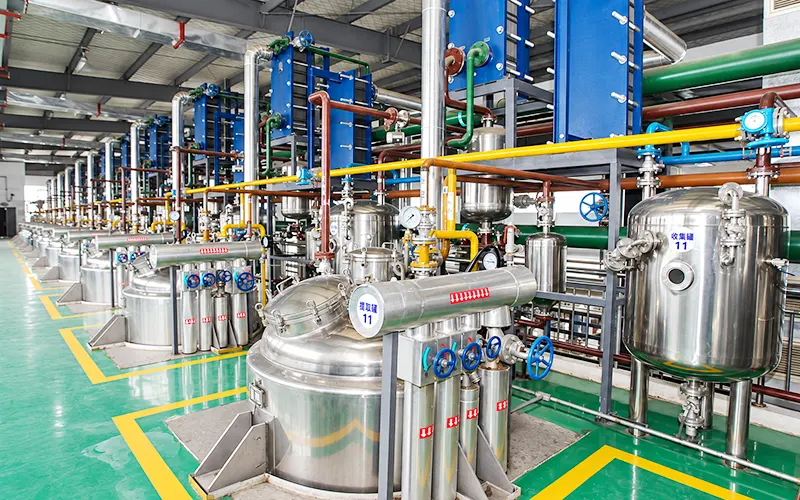

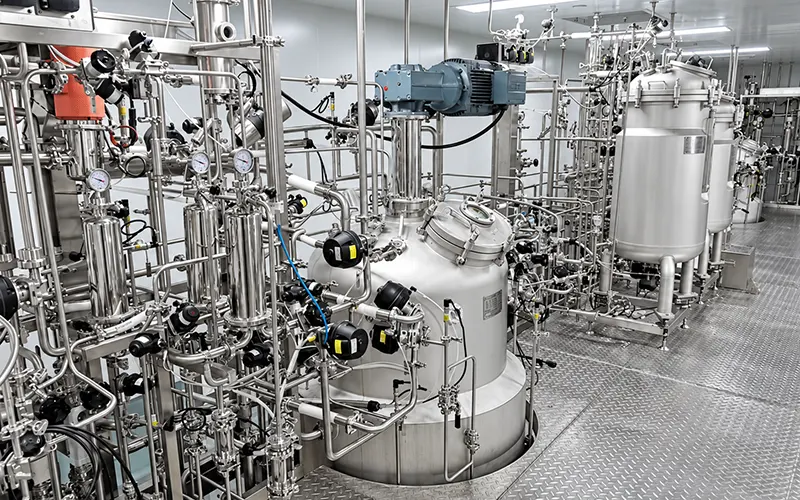

Bio-fermentation
Introduction
Bio-fermentation processes can involve complex liquids containing biomass, cell debris, suspended solids, fermentation residues, and other particulate matter, while changes in solids concentration and viscosity during fermentation can increase filtration difficulty and place additional load on downstream processing equipment. Fengnuochang provides industrial filtration equipment for process liquid pre-filtration, fermentation broth clarification, solids reduction, fine filtration, and downstream equipment protection, with different filtration technologies configured according to the fermentation medium, solids concentration, viscosity, particle characteristics, required filtration accuracy, and downstream processing requirements.
FILTRATION EQUIPMENT FOR BIO‑FERMENTATION
Different stages of fermentation and downstream processing can involve significantly different solids loads and particle characteristics. Equipment selection should therefore be based on the actual process conditions rather than relying on a single filtration technology throughout the entire process.
-
Scraper Self‑Cleaning Filters
Designed for continuous pre‑filtration of selected fermentation process liquids containing suspended solids and particulate impurities.
The automatic scraper mechanism removes accumulated contaminants from the filtration surface, helping reduce clogging, frequent manual cleaning, and process interruption.
Scraper self‑cleaning filters are particularly suitable for certain applications involving relatively high solids loading or higher‑viscosity process liquids. -
Candle Backwash Filters
Suitable for enclosed solid‑liquid separation and clarification of selected fermentation process liquids containing suspended solids.
Candle filter elements provide a large effective filtration area, while backwashing helps remove accumulated solids and restore filtration performance.
They can be used where repeated clarification cycles and reduced manual cleaning are required. -
Bag Filters
Provide flexible particle removal for raw materials, process liquids, and fermentation broth.
Different filter bag materials and micron ratings can be selected according to solids concentration, particle size, viscosity, and filtration requirements.
Bag filters can be used for pre‑filtration or intermediate filtration depending on the characteristics of the process liquid. -
Cartridge Filters
Designed for fine filtration after primary clarification.
Cartridge filters reduce residual fine particles and provide additional protection for downstream separation, concentration, purification, transfer, and other processing stages.
The appropriate cartridge type and filtration rating should be selected according to the required particle control and downstream process conditions. -
Stacked Filters
Provide a large effective filtration area and flexible filter‑media selection for clarification and polishing applications.
They are suitable for selected fermentation process liquids requiring finer particle reduction after primary solids separation. -
Magnetic Filters for Ferrous Contaminant Control
Magnetic filters provide an additional filtration stage where ferrous particle contamination is a concern.
They can help capture ferrous contaminants that may enter process liquids from pipelines, tanks, pumps, or upstream production equipment.
FILTRATION THROUGHOUT THE FERMENTATION PROCESS
Filtration requirements can change significantly from raw‑material preparation to downstream processing. Selecting suitable equipment for each stage helps distribute the solids load and provides more effective particle control throughout the process.
-
Raw Material & Process Liquid Preparation
Pre‑Filtration & Impurity Control：Bag Filters + Self‑Cleaning Filters
Suitable for removing coarse particles, foreign matter, and suspended impurities from process liquids before subsequent production stages.
This helps reduce unnecessary particulate loading and provides additional protection for downstream equipment. -
High‑Solids Fermentation Liquids
Continuous Pre‑Filtration & Solids Load Reduction：Scraper Self‑Cleaning Filters + Bag Filters
Suitable for selected fermentation process liquids containing relatively high levels of suspended solids and larger particulate residues.
Where solids accumulate rapidly or liquid viscosity is relatively high, scraper‑type self‑cleaning filtration can help reduce filtration‑surface blockage and frequent manual cleaning. -
Fermentation Broth Clarification
Biomass & Suspended Solids Reduction：Candle Backwash Filters + Stacked Filters
These filtration technologies can be used for clarification of selected fermentation process liquids by reducing biomass, fermentation residues, and suspended particles before subsequent processing.
Equipment and filter media should be selected according to solids characteristics, particle size, and the required clarification level. -
Intermediate & Fine Filtration
Residual Particle Reduction：Bag Filters + Stacked Filters + Cartridge Filters
After primary clarification, progressively finer filtration can be used to reduce residual suspended matter before downstream processing.
The appropriate filtration sequence depends on particle characteristics, required filtration accuracy, and the condition of the clarified process liquid. -
Downstream Processing & Equipment Protection
Fine Filtration：Cartridge Filters
Cartridge filtration can reduce residual fine particles after primary clarification and provide additional protection for downstream separation, concentration, purification, transfer, and other processing stages. -
Final Clarification & Downstream Preparation
Process‑Specific Filtration：Candle Filters + Stacked Filters + Cartridge Filters
Different filtration technologies can be selected or combined according to the target product, particle characteristics, required clarity, and requirements of subsequent processing stages.
FROM FERMENTATION BROTH TO CLARIFIED PROCESS LIQUID
Fermentation liquids can contain particles across a broad range of sizes and concentrations. In these conditions, staged filtration can help distribute the solids load more effectively than relying on a single filtration step.
A typical configuration may include:
Fermentation Process Liquid
↓
Continuous Pre‑Filtration
Scraper Self‑Cleaning Filter
High‑solids & coarse particle reduction
↓
Primary Clarification
Candle Backwash Filter
Biomass & suspended solids reduction
↓
Intermediate Filtration
Bag Filter / Stacked Filter
Finer particle reduction
↓
Fine Filtration
Cartridge Filter
Residual particle control
↓
Downstream Processing / Further Treatment
This sequence is not a fixed process design. Actual equipment selection should be based on the fermentation medium, solids concentration, viscosity, particle characteristics, target product, and downstream treatment requirements.
DESIGNED AROUND FERMENTATION PROCESS CHALLENGES
-
Better Handling of High‑Solids Liquids
Fermentation processes can generate biomass, cell debris, suspended solids, and other particulate matter.
For suitable applications, self‑cleaning and backwash filtration technologies can help manage solids accumulation and reduce frequent manual filter cleaning. -
Multiple Levels of Filtration
Different filtration technologies can be combined from coarse pre‑filtration and broth clarification to intermediate and fine particle removal.
This allows the filtration process to be configured according to changing solids loads and clarification requirements at different production stages. -
Material & Filter Media Options
SS304 and SS316L equipment configurations are available, together with different filter bags, cartridges, filter elements, and filtration media.
Material and filter‑media selection should be based on the process liquid, operating conditions, filtration target, and equipment requirements. -
Flexible Cleaning Methods
Depending on the filtration technology, equipment can be configured with automatic scraper cleaning, backwashing, or replaceable filtration media.
The appropriate cleaning method should be selected according to solids loading, operating cycle, and maintenance requirements. -
Customized for Your Fermentation Process
Filtration area, flow capacity, micron rating, equipment material, inlet/outlet connections, pressure rating, cleaning method, and system configuration can be customized according to the fermentation liquid and existing production line.
FILTRATION SELECTION DEPENDS ON YOUR TARGET PROCESS
There is no single filtration configuration suitable for every fermentation broth.
Different fermentation processes may have very different solids concentrations, viscosities, particle characteristics, target products, and downstream processing requirements.
The purpose of filtration should also be clearly defined. Depending on the process, the required result may involve reducing suspended solids, clarifying the liquid phase, protecting downstream equipment, or preparing the process stream for further treatment.
For more accurate equipment selection, please provide:
- Fermentation Medium
- Target Product
- Required Flow Rate
- Solids / Biomass Condition
- Particle Size & Required Filtration Accuracy
- Viscosity & Operating Temperature
- Operating Pressure
- Upstream & Downstream Process
Based on these process conditions, Fengnuochang can recommend a suitable combination of filtration equipment, filter media, filtration area, cleaning method, and system configuration.
SEND YOUR FERMENTATION PROCESS CONDITIONS TO OUR ENGINEERS
Send us your fermentation medium, flow rate, solids condition, filtration accuracy, viscosity, pressure, temperature, and process requirements. Our engineers will recommend a suitable filtration solution for your application.
