10-Round 20-Inch Stainless Steel Cartridge Filter Housing
The 10-Round 20-Inch Stainless Steel Cartridge Filter Housing is designed for industrial water treatment and liquid filtration. It accommodates 10 replaceable filter cartridges and supports different filtration requirements through cartridge selection.
- 10-Cartridge Configuration
- 20-Inch Filter Cartridge Compatibility
- Stainless Steel Construction
- Flexible Filtration Options
- Whatsapp：+86 13013610535
- E-mail：janice@fengnuochang.com
Detail
Technical Specifications
| Product Name | 10-Round Cartridge Filter Housing |
|---|---|
| Filter Type | Multi-Cartridge Filter |
| Number of Cartridges | 10 |
| Cartridge Length | 20 Inches |
| Housing Material | SS304 / SS316L (Optional) |
| Filtration Accuracy | Depends on Cartridge Selection |
| Operating Pressure | Available Upon Request |
| Inlet / Outlet Connection | Customized |
Internal Structure & Cartridge Details
The 10-Round 20-Inch Stainless Steel Cartridge Filter Housing features a removable cartridge assembly designed to provide access to the internal filter elements for inspection and replacement.
Removable Multi-Cartridge Assembly

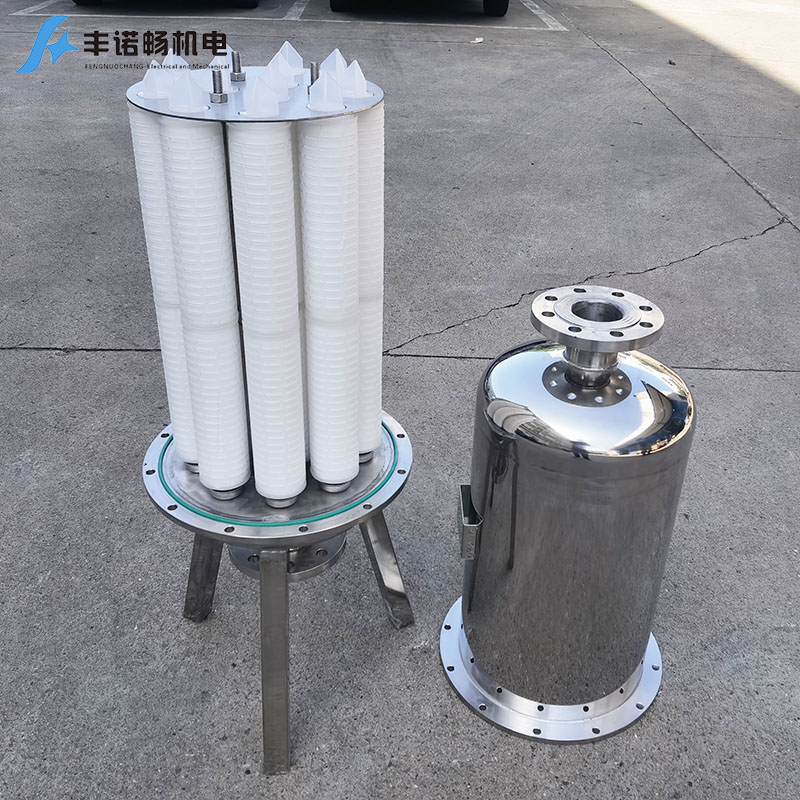

Actual product view showing the filter cartridge assembly, stainless steel support structure, sealing gasket, and removable filter housing.
01 | Cartridge Arrangement
Ten 20-inch filter cartridges are arranged within the assembly for industrial liquid filtration.
02 | Sealing Structure
A gasket is positioned along the flange interface to support sealing when the housing is assembled.
03 | Maintenance Access
The removable housing provides access to the cartridge assembly for routine inspection and cartridge replacement.
Structural Design: The multi-cartridge arrangement combines replaceable filtration elements with a stainless steel housing. The accessible internal assembly supports routine maintenance and flexible cartridge selection according to filtration requirements.
Related Cartridge Filter Model Selection
| Model | Flow Rate | Working Pressure | Filter Element Specification | Height | Diameter | Inlet/Outlet |
|---|---|---|---|---|---|---|
| FNC-5XK-10C | 2.5T/H | 0–0.6 MPa | Φ60×250 | 550 mm | Φ219 | 3/4" Female Thread |
| FNC-5XK-20C | 5T/H | 0–0.6 MPa | Φ60×500 | 830 mm | Φ219 | 1" Female Thread |
| FNC-5XF-20C | 5T/H | 0–1.0 MPa | Φ60×500 | 830 mm | Φ219 | 1" Female Thread |
| FNC-5XF-40C | 7T/H | 0–1.0 MPa | Φ60×1000 | 1100 mm | Φ219 | 1.5" Female Thread |
| FNC-10XF-40C | 10T/H | 0–1.0 MPa | Φ60×1000 | 1100 mm | Φ300 | 1.5" Female Thread |
| FNC-20XF-40C | 20T/H | 0–1.0 MPa | Φ60×1000 | 1200 mm | Φ400 | 2" Female Thread |
| FNC-30XF-40C | 30T/H | 0–1.0 MPa | Φ60×1000 | 1250 mm | Φ506 | 2.5" Female Thread |
| FNC-40XF-40C | 40T/H | 0–1.0 MPa | Φ60×1000 | 1300 mm | Φ550 | 3" Female Thread |
| FNC-50XF-40C | 50T/H | 0–1.0 MPa | Φ60×1000 | 1350 mm | Φ610 | 4" Female Thread |
Note: Custom-designed non-standard multi-element filters available.
Working Principle
The 10-round stainless steel cartridge filter housing operates through a physical filtration process. Unfiltered liquid enters the housing and flows through 10 filter cartridges, where suspended particles and impurities are captured by the filter media. The filtered liquid is then collected and discharged through the outlet.
Filtration performance depends on the cartridge material, filtration rating, and operating conditions. The filter cartridges can be replaced as needed to maintain consistent filtration performance.
Filtration Process
Liquid Inlet
Unfiltered liquid enters the filter housing.
Cartridge Filtration
Liquid flows through the filter media of the 10 cartridges.
Particle Retention
Suspended particles are retained by the filter cartridges.
Filtered Liquid Outlet
Filtered liquid is collected and discharged through the outlet.
Applications
RO System Pre-filtration
Removes suspended particles before reverse osmosis membranes to help protect downstream equipment.
Industrial Water Treatment
Provides cartridge filtration for process water and industrial water treatment systems.
Chemical Processing
Supports particle removal from compatible chemical liquids, depending on the selected filter cartridges and housing materials.
Ordering & Delivery Information
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Protective Film, Secure Fixing, Export-Grade Plywood Cases |
| Lead Time: | 15–30 Days (Depending on Order Requirements) |
| Payment Terms: | T/T (50% Deposit, 50% Before Shipment); Other Terms Negotiable |
| Supply Ability: | Customized Production Based on Project Requirements |
FAQ & Contact Us
What filter cartridges are compatible with this housing?
This housing is designed to accommodate ten 20-inch filter cartridges. Cartridge materials and filtration ratings can be selected according to the application. Cartridge end-cap and sealing compatibility should be confirmed before ordering.
Can the filtration accuracy be customized?
Yes. The filtration rating depends on the selected filter cartridges. Different micron ratings can be considered according to the liquid characteristics, required filtration results, and operating conditions.
How often should the filter cartridges be replaced?
Replacement frequency depends on the liquid quality, particle concentration, operating flow rate, and cartridge type. Cartridge condition and differential pressure should be monitored to determine the appropriate replacement interval.
Can the cartridge filter housing be customized?
Customization options may include housing material, inlet and outlet connections, sealing components, and other structural requirements. Please contact FENGNUOCHANG with your application details to discuss a suitable configuration.
Contact Us
Need a Customized
Filtration Solution?
Not sure which cartridge filter housing suits your application?
Tell us about your liquid, required flow rate, or filtration challenges. Our team will help you select a suitable filtration solution.
Contact FENGNUOCHANG for product details and a customized quotation.
