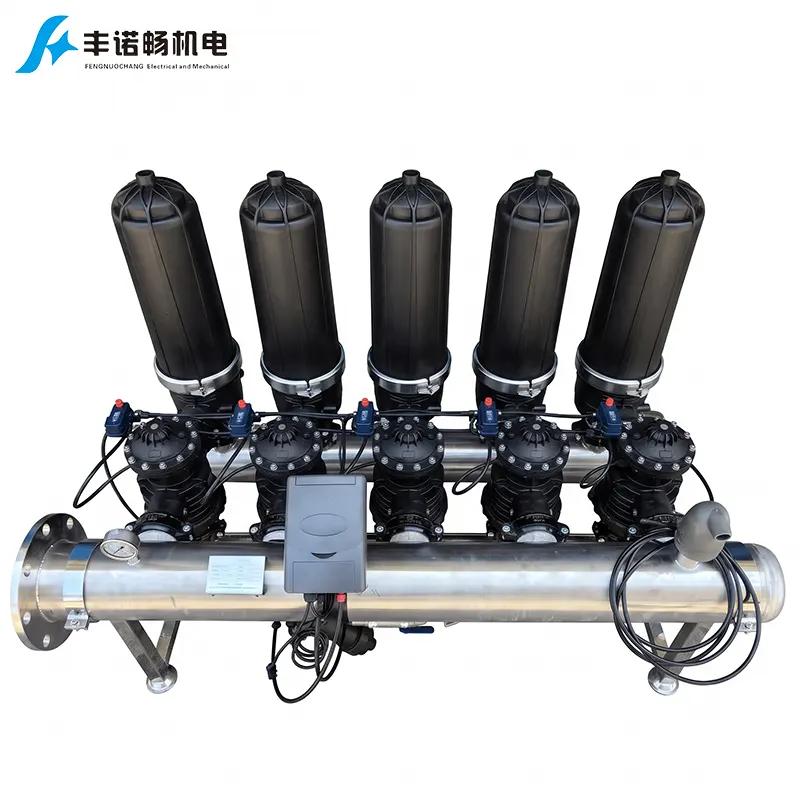

3 Inch 5 Unit Automatic Disc Backwash Filter SS304 Water Filtration
Description:
·Automatic Disc Backwash Filter
·3 Inch Disc Filter
·Self-Cleaning Filtration System
·SS304 / SS316L Stainless Steel Filter
·Industrial Water Treatment
·Automatic Backwash Filter
Applications:
·Industrial Water Treatment
·Wastewater Treatment
·Irrigation Water Filtration
·Cooling Water Systems
·Process Water Filtration
·Industrial Liquid Filtration
- Whatsapp：+86 13013610535
- E-mail：janice@fengnuochang.com
Detail
| Product Name | 3 Inch 5-Unit Automatic Disc Backwash Filter |
| Filter Type | Disc Backwash Filter |
| Disc Quantity | 5 Filter Units |
| Inlet / Outlet Size | 3 Inch |
| Material | SS304 / SS316L Stainless Steel |
| Filtration Accuracy | 20–200 μm (Optional) |
| Cleaning Method | Automatic Backwashing |
| Control Mode | PLC Automatic Control |
| Application | Water Treatment, Irrigation, Industrial Process Water Filtration |
Specifications:
| Model | Number of Units | Main Pipe Size | Working Pressure | Flow Rate (100μm) |
| FNCDP202-3 | 2×2" | 3" | 10bar | 50m3/h |
| FNCDP203-4 | 3×2" | 4" | 10bar | 64m3/h |
| FNCDP302-4 | 2×3" | 4" | 10bar | 75m3/h |
| FNCDP303-4 | 3×3" | 4" | 10bar | 96m3/h |
| FNCDP304-6 | 4×3" | 6" | 10bar | 128m3/h |
| FNCDP305-6 | 5×3" | 6" | 10bar | 160m3/h |
| FNCDP306-8 | 6×3" | 8" | 10bar | 192m3/h |
| FNCDP403-6 | 3×4" | 6" | 10bar | 192m3/h |
| FNCDP404-6 | 4×4" | 6" | 10bar | 256m3/h |
| FNCDP405-6 | 5×4" | 6" | 10bar | 320m3/h |
| FNCDP406-8 | 6×4" | 8" | 10bar | 384m3/h |
| FNCDP407-8 | 7×4" | 8" | 10bar | 448m3/h |
| FNCDP408-8 | 8×4" | 8" | 10bar | 512m3/h |
| FNCDP409-10 | 9×4" | 10" | 10bar | 576m3/h |
| FNCDP410-10 | 10×4" | 10" | 10bar | 640m3/h |
Note: Customized based on actual working conditions
Competitive Advantage:
· Automatic backwashing reduces manual cleaning and ensures continuous filtration.
· 5-unit disc filtration design provides high flow capacity and stable performance.
· SS304/SS316L stainless steel construction delivers excellent corrosion resistance and durability.
· Low maintenance and long service life for industrial operation.
· Custom solutions available for different water treatment requirements.
Product Information
| Place of Origin: | JIANGSU, CHINA |
| Brand Name: | FENGNUOCHANG |
| Certification: | ISO9001:2015, CE |
Product Terms
| Minimum Order Quantity: | 1 |
| Packaging Details: | Packed with anti-scratch film, sealed connections, customized fixing supports, and strong plywood cases or steel-frame packaging for safe international transportation. |
| Delivery Time: | 15~30days |
| Payment Terms: | T/T (50% deposit, 50% balance before shipment), L/C, and other payment methods are negotiable. |
| Supply Ability: | Customized production capacity based on order quantity and project requirements. |
Working Principle
Filtration Mode:
Raw water flows through the stacked disc elements. The grooves between discs capture suspended solids and impurities, while clean water passes through the outlet.
Automatic Backwashing:
When △P reaches the preset value, the system automatically releases and cleans the discs by reverse water flow. The impurities are discharged through the drain outlet, restoring filtration performance without interrupting operation.
Raw Water Inlet
↓
Disc Filtration (Impurities Trapped)
↓
△P Detection
↓
Automatic Backwashing
↓
Impurities Discharge
↓
Filtration Recovery
