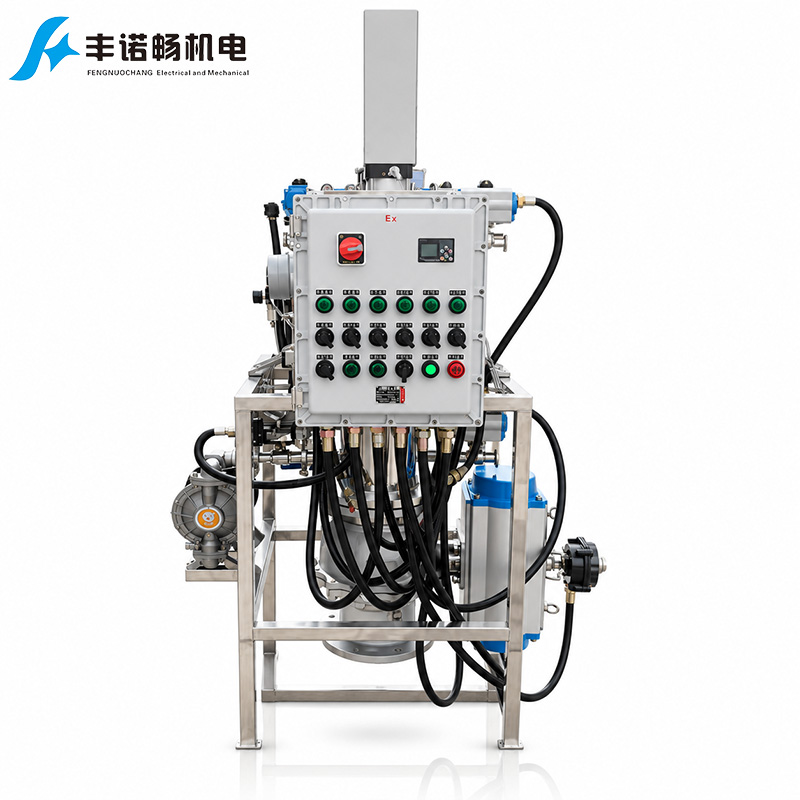

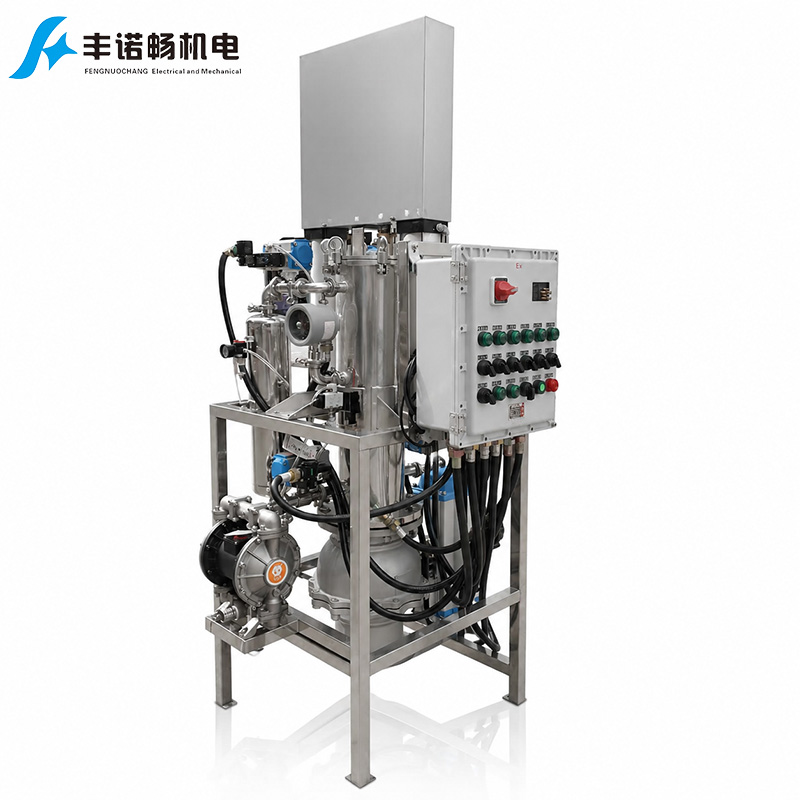

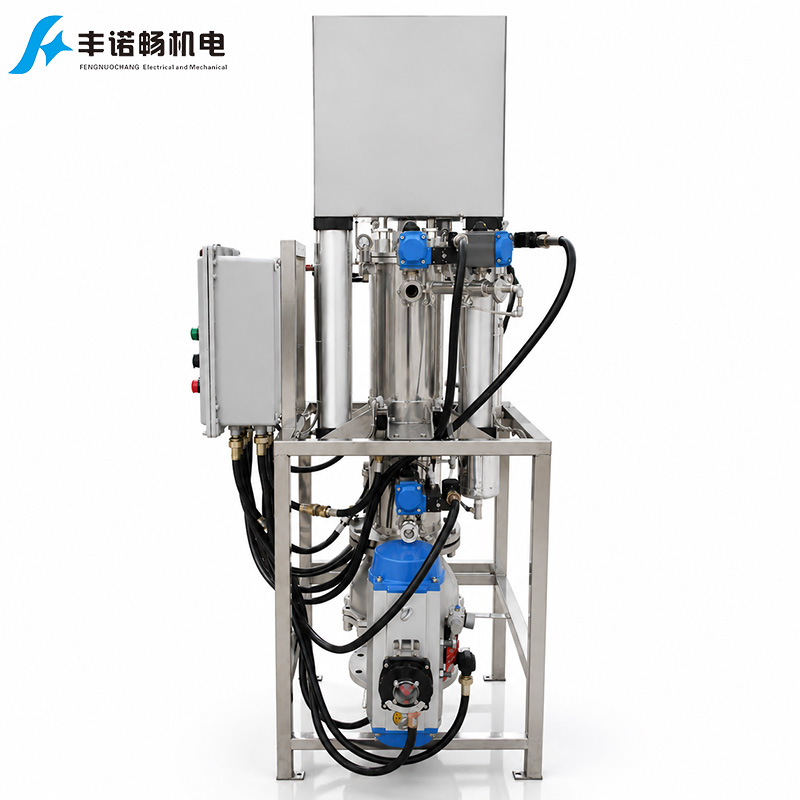

Explosion-Proof Automatic Candle Backwash Filter with Pneumatic Cylinder
Description:
· Explosion-Proof Candle Backwash Filter
· Automatic Backwash Filter
· Pneumatic Cylinder Filter
· Candle Filter Element
· SS304 / SS316L Stainless Steel Filter
· Industrial Liquid Filtration
Applications:
· Chemical Processing
· Pharmaceutical Filtration
· Petrochemical Industry
· Paint & Coating Filtration
· Food & Beverage Processing
· High-Purity Industrial Liquid Filtration
- Whatsapp：+86 13013610535
- E-mail：janice@fengnuochang.com
Detail
| Product Name | Explosion-Proof Pneumatic Candle Backwash Filter |
| Filter Type | Automatic Candle Filter |
| Filter Element | Single Candle Element |
| Material | SS304 / SS316L Stainless Steel |
| Cleaning Method | Automatic Backwashing |
| Drive Method | Explosion-Proof Pneumatic Cylinder |
| Filtration Rating | 1–100 μm |
| Pressure Rating | 0.6–1.6 MPa |
| Control Mode | △P / Time Control |
| Available | △P / Time ControlOEM Service |
Specifications:
| Model |
Clean Water Flow Rate (m³/h) |
Raw Water Flow Rate (m³/h) |
Inlet/Outlet Size (N1, N2) |
Tank Diameter (D/mm) |
Drain Outlet Size (N3) |
Backwash Inlet Size (N4) |
Filtration Area (m²) |
| FNCZSFCX-1X40C | 5 | 1 | DN25 | 219 | DN200 | DN25 | 0.25 |
| FNCZSFCX-4X40C | 20 | 4 | DN32 | 325 | DN200 | DN25 | 1.00 |
| FNCZSFCX-9X40C | 45 | 9 | DN40 | 506 | DN200 | DN40 | 2.25 |
| FNCZSFCX-21X40C | 105 | 20 | DN80 | 806 | DN300 | DN40 | 5.25 |
| FNCZSFCX-35X40C | 175 | 35 | DN100 | 910 | DN400 | DN50 | 8.75 |
| FNCZSFCX-50X40C | 250 | 50 | DN125 | 1110 | DN400 | DN65 | 12.50 |
| FNCZSFCX-89X40C | 445 | 90 | DN150 | 1510 | DN500 | DN80 | 22.25 |
NOTE: Users can customize according to actual working conditions
Competitive Advantage:
· Explosion-proof pneumatic design ensures safe operation in hazardous environments.
· Automatic backwashing system reduces manual maintenance and improves efficiency.
· High precision candle filtration effectively removes fine particles and impurities.
· Continuous operation design minimizes downtime during production.
· SS304/SS316L stainless steel construction provides durability and corrosion resistance.
· Customized solutions available for different industrial filtration requirements.
Product Information
| Place of Origin: | JIANGSU, CHINA |
| Brand Name: | FENGNUOCHANG |
| Certification: | ISO9001:2015, CE |
Product Terms
| Minimum Order Quantity: | 1 |
| Packaging Details: | Packed with anti-scratch film, sealed connections, customized fixing supports, and strong plywood cases or steel-frame packaging for safe international transportation. |
| Delivery Time: | 15~30days |
| Payment Terms: | T/T (50% deposit, 50% balance before shipment), L/C, and other payment methods are negotiable. |
| Supply Ability: | Customized production capacity based on order quantity and project requirements. |
Working Principle
The liquid flows through the candle element from outside to inside, where suspended particles are captured on the filter surface. When ΔP reaches the preset value, the explosion-proof pneumatic cylinder activates the backwashing process. Clean liquid flows in the reverse direction to remove trapped impurities, which are discharged automatically, restoring filtration performance without interrupting operation.
1. Filtration Stage
Raw Liquid Inlet → Outside → Inside Flow Through Candle Element → Impurities Trapped → Clean Liquid Outlet
↓
2. △P Detection
Impurity Accumulation → Differential Pressure (△P) Increase → Automatic Cleaning Signal
↓
3. Pneumatic Backwashing
Explosion-Proof Pneumatic Cylinder Activated → Reverse Cleaning Flow Inside → Outside → Candle Element Regenerated
↓
4. Impurity Discharge
Contaminants Removed → Drain Outlet Discharge → Filtration Restored
